Standard Modular Positioning Systems

To help accelerate project timelines and mitigate risk, we can pull from our repository of proven standard modular designs. Each modular series consists of various versions that incorperate components from many different vendors, providing us the flexibity to decrease lead-times while managing precision. Local dedicated shops, who have invested time and knowledge into our designs, focus and work closely with us to ensure high quality, high precision, and the best lead-times possible.


Our modular systems are standard products that can be purchased outside of working with Precision Mindset. If interested in acquireing more detail about a specific series or have a need for a system, please contact our partner company PrecisionX Systems.

80041 Single-Axis Series

A picture of a 50 mm travel 80041 series single-axis linear positioning system.
  • Compact Low-Profile Design
  • Rectangular footprint
  • Travels: 50 mm to 200 mm
  • High speed linear motors
  • High resolution absolute linear encoder
  • 4 mm crossed roller bearings

80045 Single-Axis Series

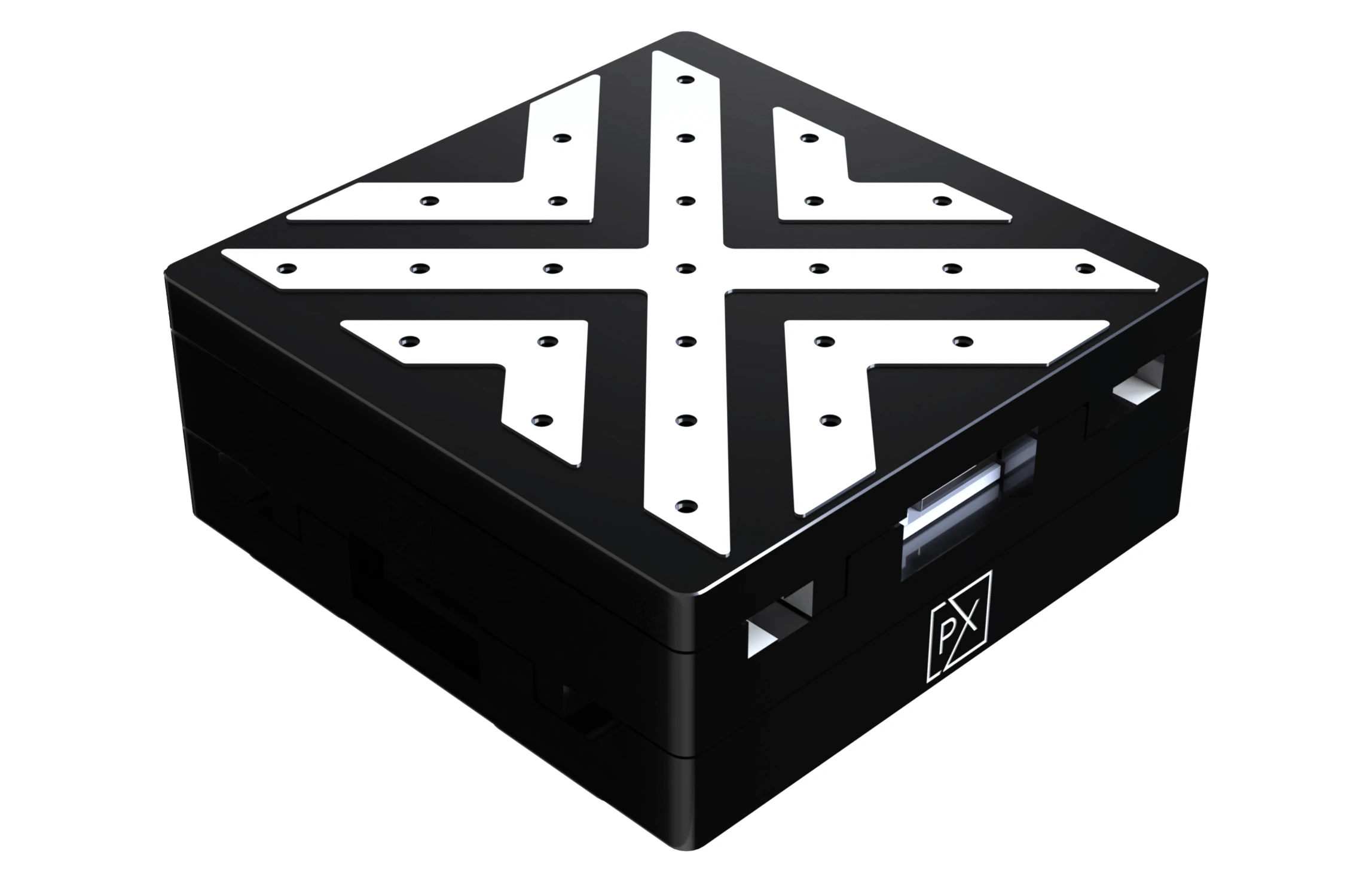

A picture of a 100 mm travel 80045 series single-axis linear positioning system.
  • Compact Low-Profile Design
  • Square footprint
  • Travel: 100 mm
  • High speed linear motors
  • High resolution absolute linear encoder
  • 4 mm crossed roller bearings

80045 Dual-Axis (XY) Series

A picture of a 100 mm X 100 mm travel 80045 series dual-axis XY linear positioning system
  • Compact Low-Profile Design
  • Square footprint
  • Travel: 100 mm X 100 mm
  • High speed linear motors
  • High resolution absolute linear encoder
  • Crossed roller bearings

80046 Single-Axis Series

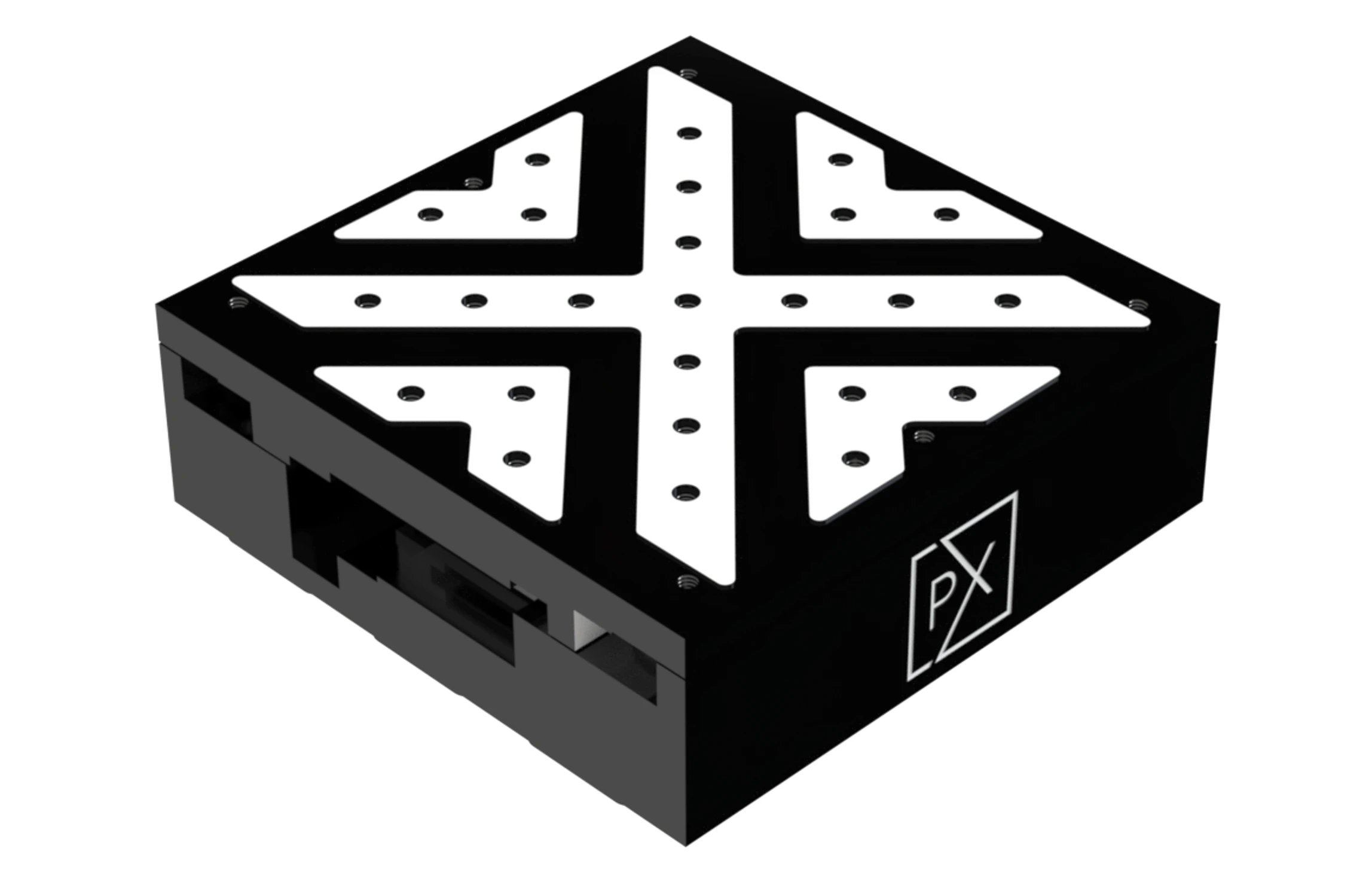

A picture of a 100 mm travel 80046 series single-axis linear positioning system
  • Compact Low-Profile Design
  • 100mm Travel
  • High speed linear motors
  • High resolution absolute linear encoder
  • Crossed roller bearings

80050 Single-Axis Series

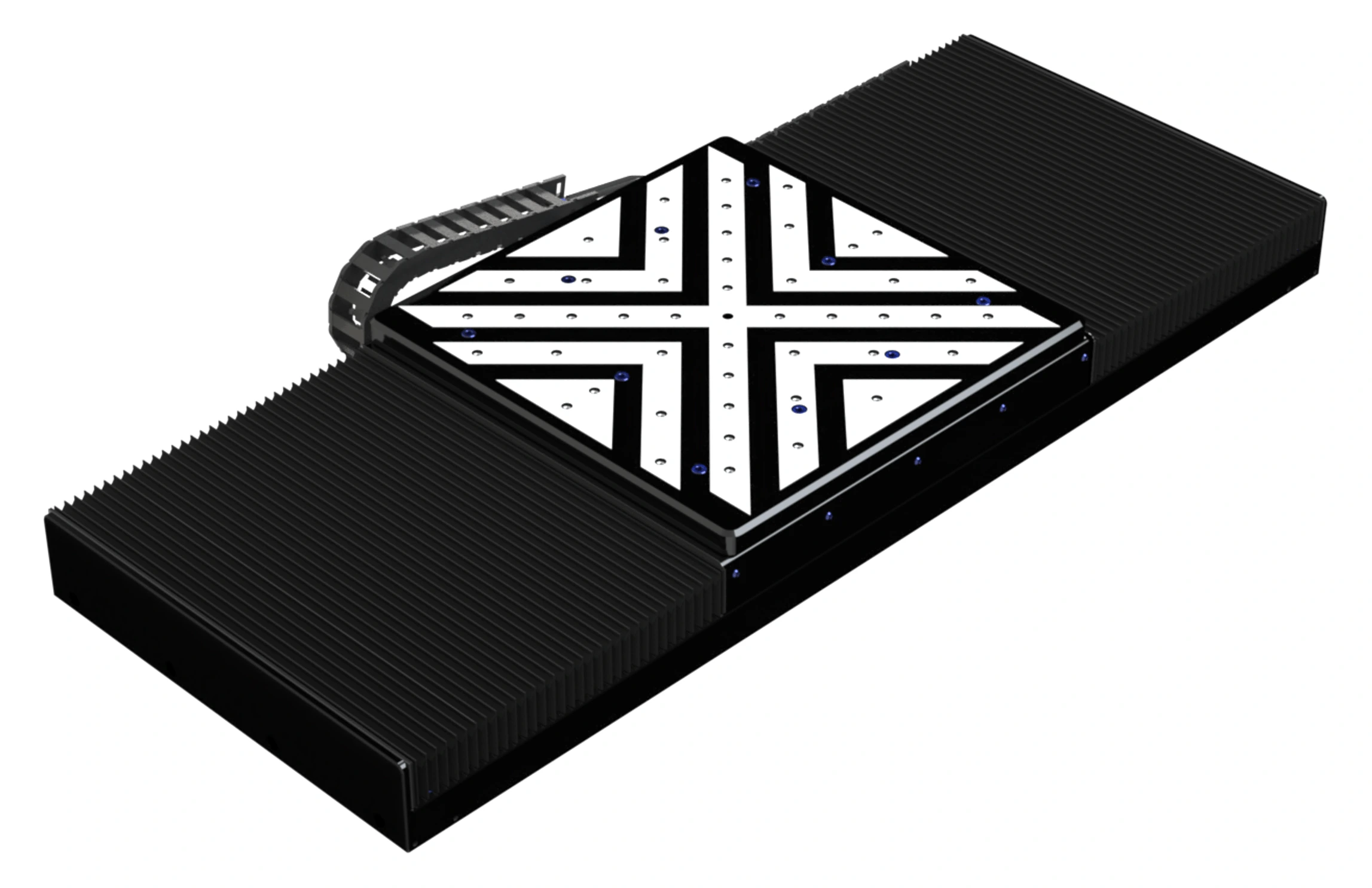

A picture of a 350 mm travel 80050 series single-axis linear positioning system.
  • Mountable to non-flat surfaces
  • Compact Low-Profile Design
  • Travels: 250 mm to 350 mm
  • High speed linear motors
  • High resolution absolute linear encoder
  • Linear ball bearings
  • Way covers

80056 Dual-Axis (XY) Series

A picture of a 100 mm travel 80056 series dual-axis XY linear positioning system.
  • Compact Low-Profile Design
  • Rectangular footprint
  • Travel: 100 mm X 100 mm
  • High speed linear motors
  • High resolution absolute linear encoder
  • 4 mm crossed roller bearings

80058 Dual-Axis (XY) Systems

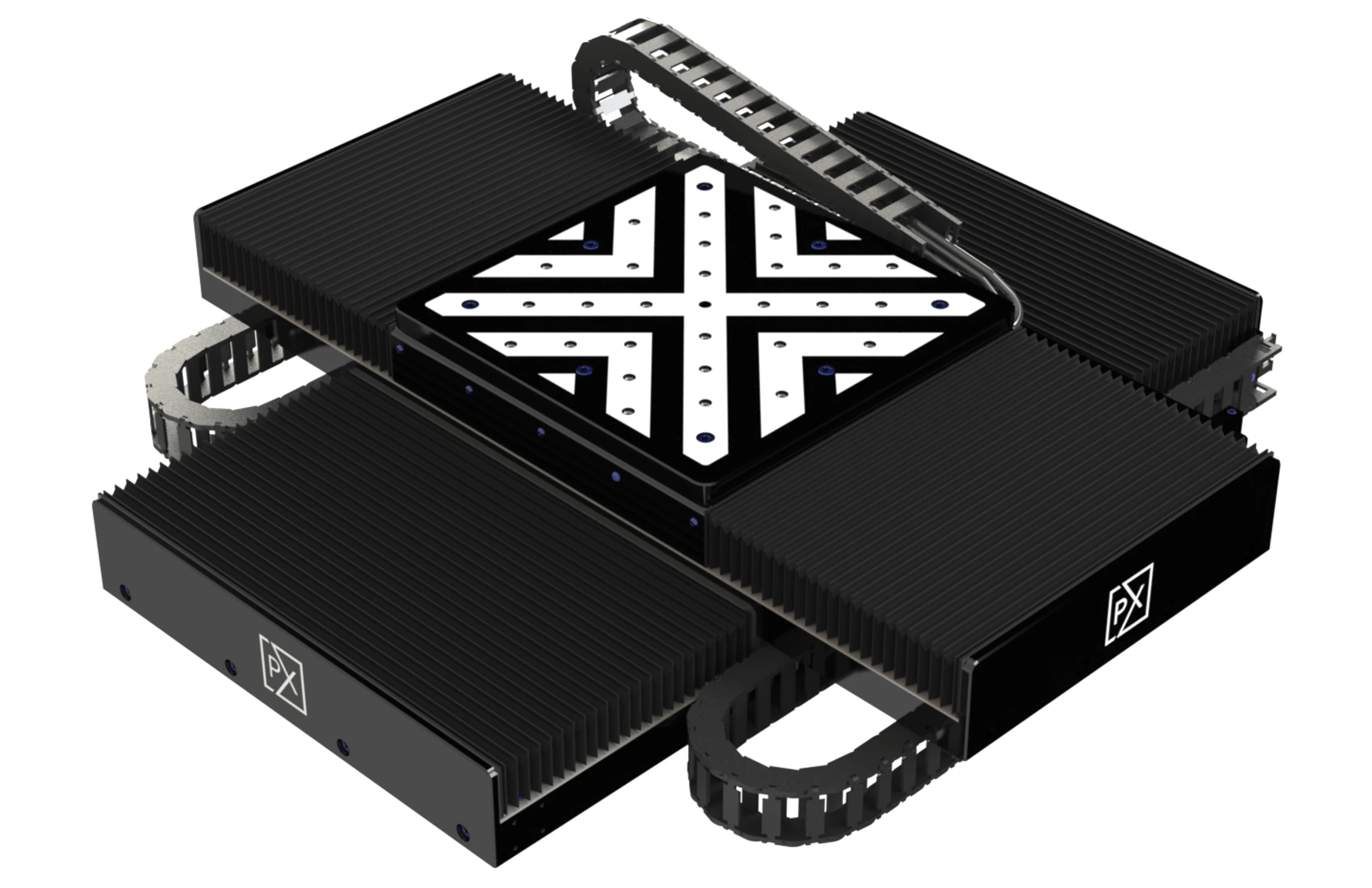

A picture of a 250 mm X 250 mm travel 80058 series dual-axis XY linear positioning system.
  • Compact Low-Profile Design
  • Mountable to non-flat surfaces
  • Travel: 250 mm X 250 mm
  • High speed linear motors
  • High resolution absolute linear encoder
  • Linear ball bearings
  • Way covers

80059 Rotary Axis Series

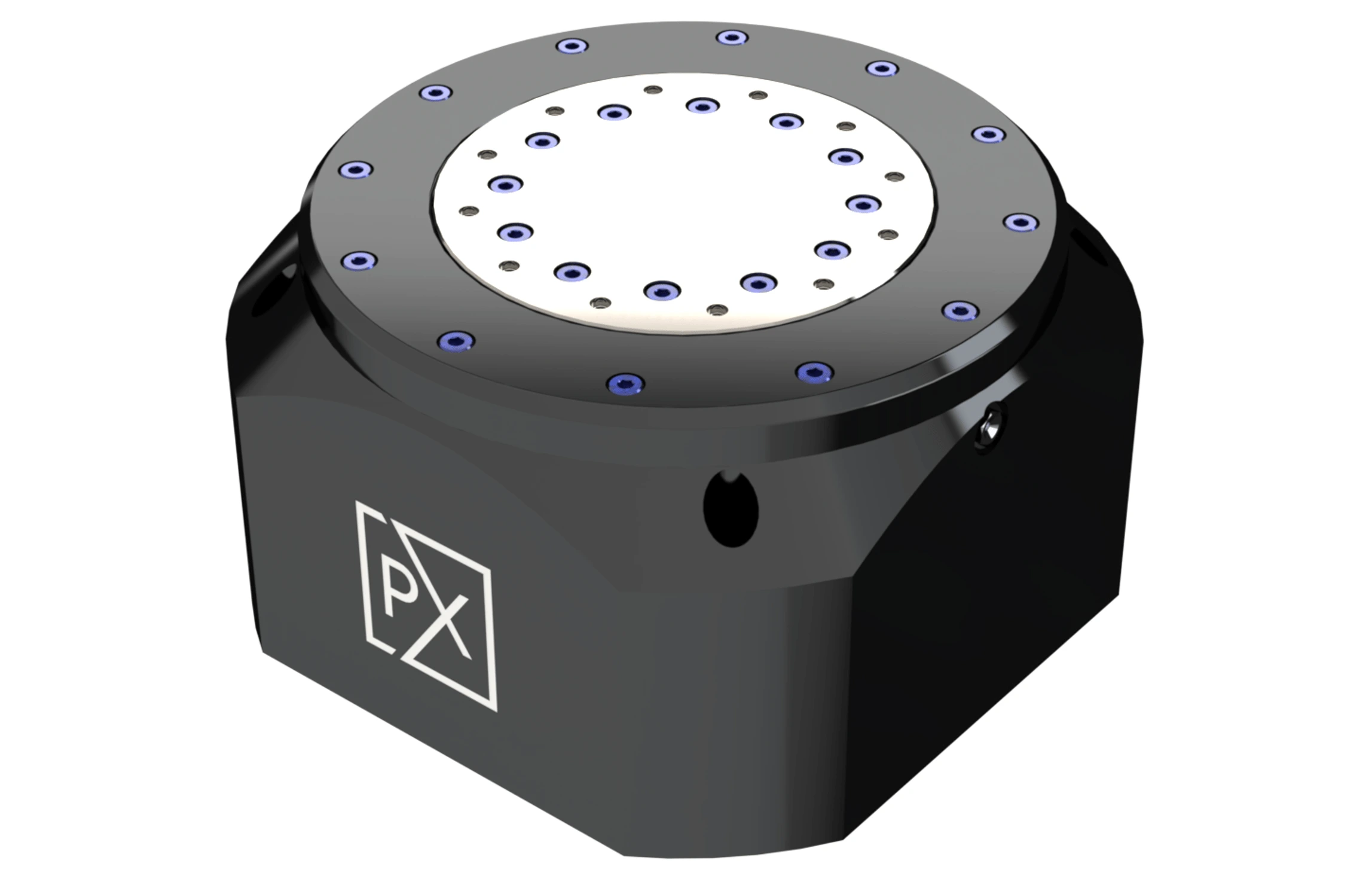

A picture of a 90 mm diameter 80059 series rotary positioning system
  • Travel: 360°
  • Direct drive torque motor
  • High resolution absolute linear encoder
  • Crossed roller bearings

80060 Rotary Trunnion Series

A picture of a 90 mm diameter 80060 series rotary trunnion.
  • C-axis Travel: 360°
  • Trunnion Travel: 180°
  • Direct drive torque motors
  • Balanced heat sources
  • High resolution absolute linear encoder
  • Crossed roller bearings
